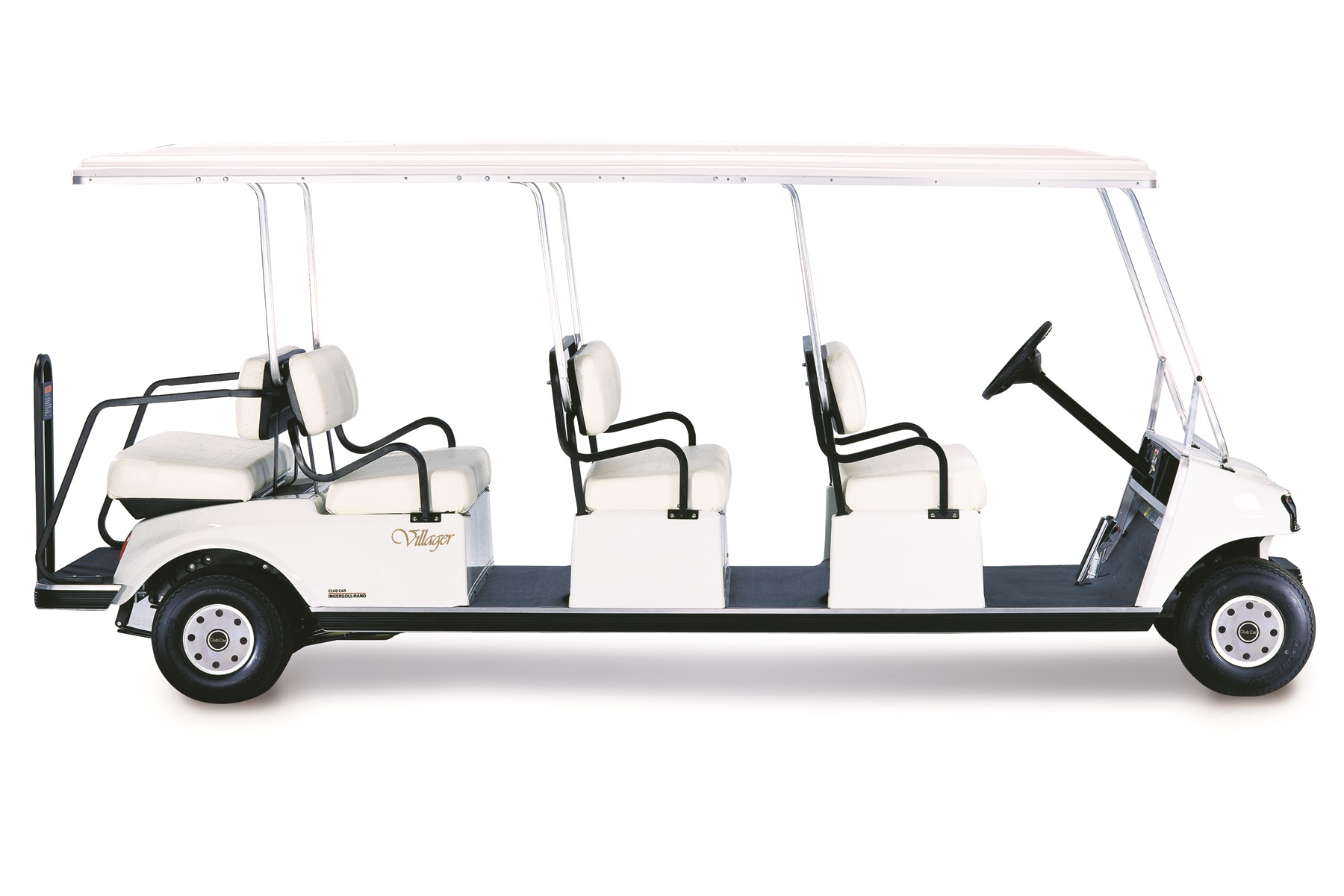

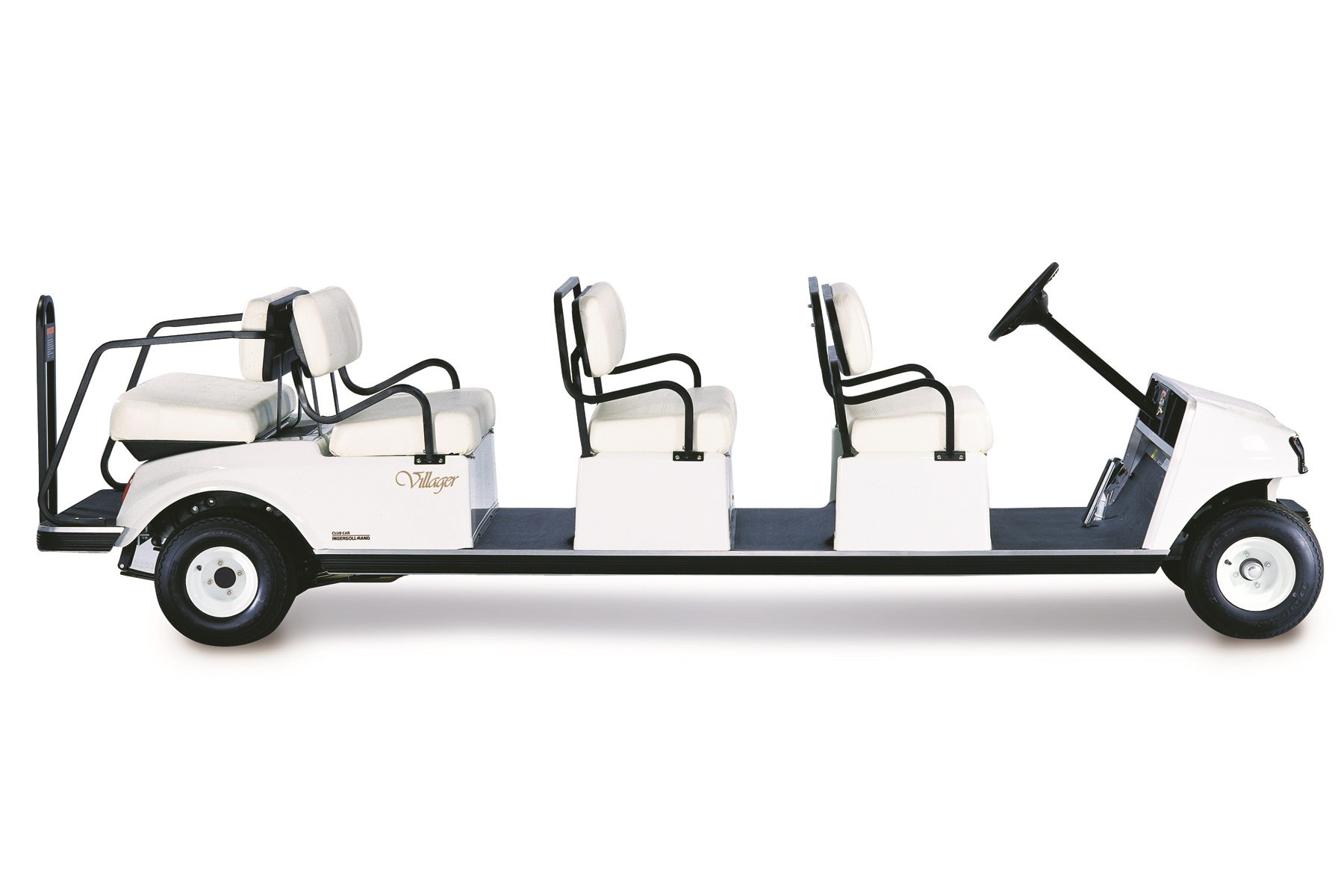

Villager 8 Gas Transportation Vehicle
Both economic and efficient, the Villager 8 is the ultimate passenger vehicle,
transporting up to seven passengers and a driver with ease and comfort. Perfect for
tours, shuttles, and large-volume resort transportation.
|
| |
|
|
|
|
| |
|
- Rustproof Aircraft Grade Aluminum Frame
- Independent front suspension with self-adjusting rack and pinion steering
- Industry\'s Best 2-year Limited Warranty
- Maximum speed of 16 mph (25.7 kph)
- Fixed Rear Seat Standard, Fold Down Rear Seat Available
- Taillights, Brake Lights, Halogen Headlights, and Horn
- Dual Dash Compartments
- Fuel gauge/hour meter standard
- Carries up to 8 passengers
- ArmorFlex® Front Body for fade-resistant color
- 351 cc gasoline 11.5 hp engine
Power Source |
Gas |
Engine |
Kawasaki 4-cycle, OHV, 351 cc, single-cylinder, air-cooled, pressure-lubricated, spin-on oil filter |
Horsepower |
11.5 hp @ 3,600 rpm, exceeds SAE J1940 Performance Standards |
Steering |
Self-adjusting rack and pinion |
Front Suspension |
Independent leaf spring with dual hydraulic shocks |
Seating Capacity |
8 |
Ground Clearance |
4.5 in (11.4 cm) |
Fuel Tank Capacity |
7 gal (26L) |
Speed Range |
14-16 mph (22.5-25.7 kph) |
Brakes |
4-wheel mechanical drum |
Frame Chassis |
Aluminum I-beam |
Body |
ArmorFlex® |
Body color |
Matching paint over molded in color |
Front tires |
18 x 6.50-8, 6-ply rated, premium tread |
Rear tires |
18 x 6.50-8, 6-ply rated, premium tread |
Overall Length |
157 in (398.8 cm) |
Overall Width |
47.3 in (120.1 cm) |
Overall Height |
48 in (121.9 cm) |
Wheelbase |
131.5 in (334 cm) |
Tread |
34.5 in/38.6 in (87.6 cm/97.8 cm) |
Dry Weight (Less Batteries) |
866 lb (393.2 kg) |
Vehicle Warranty |
2-year limited |
Ignition |
Electronic with electronic limiter |
Electrical System |
12-volt, 500 cca 105 min reserve |
Rear Suspension |
Leaf springs with dual hydraulic shocks |
Instrumentation |
Electronic fuel gauge/hour meter, low-oil warning light |
Total Vehicle Capacity |
1,500 lb (681 kg) |
Turning Radius |
15.9 ft (4.8 m) |
Governor |
Automatic ground speed sensing, internally geared-in unitized transaxle |
Governed RPM |
3050 +/- 30 |
Drive Unit |
Unitized transaxle, helical gears: 11.8:1 forward, 17.1:1 reverse |
Outside Radius Circle |
32.6 ft (9.9 m) dia |
Intersecting Aisle Radius |
9 ft (274.3 cm) |
Stabilizer Bar |
Yes |
Light Package |
Standard |
|
| |
|
|
|
|
|
