  Product >Commercial/Business Utility Vehicles > Transport

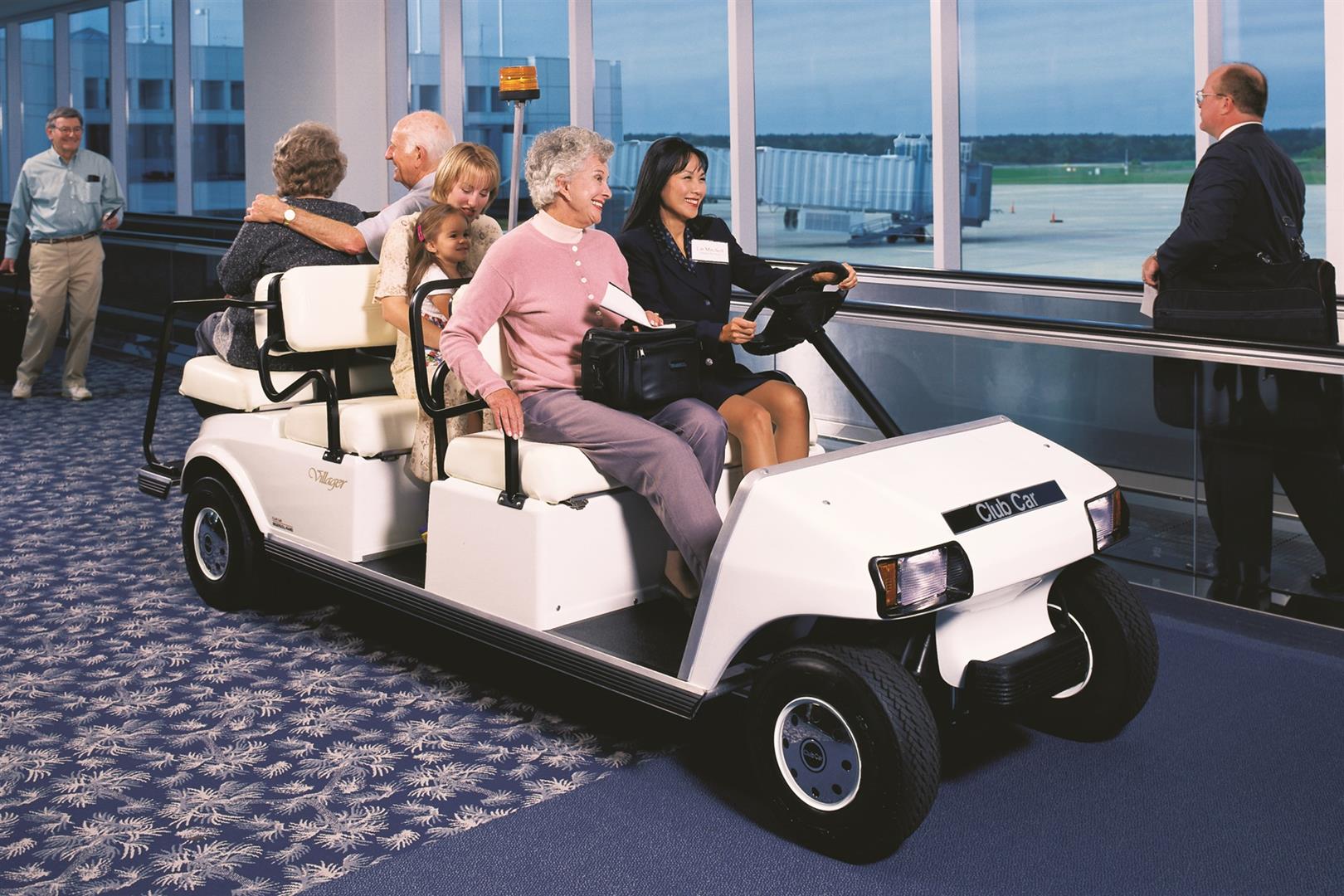

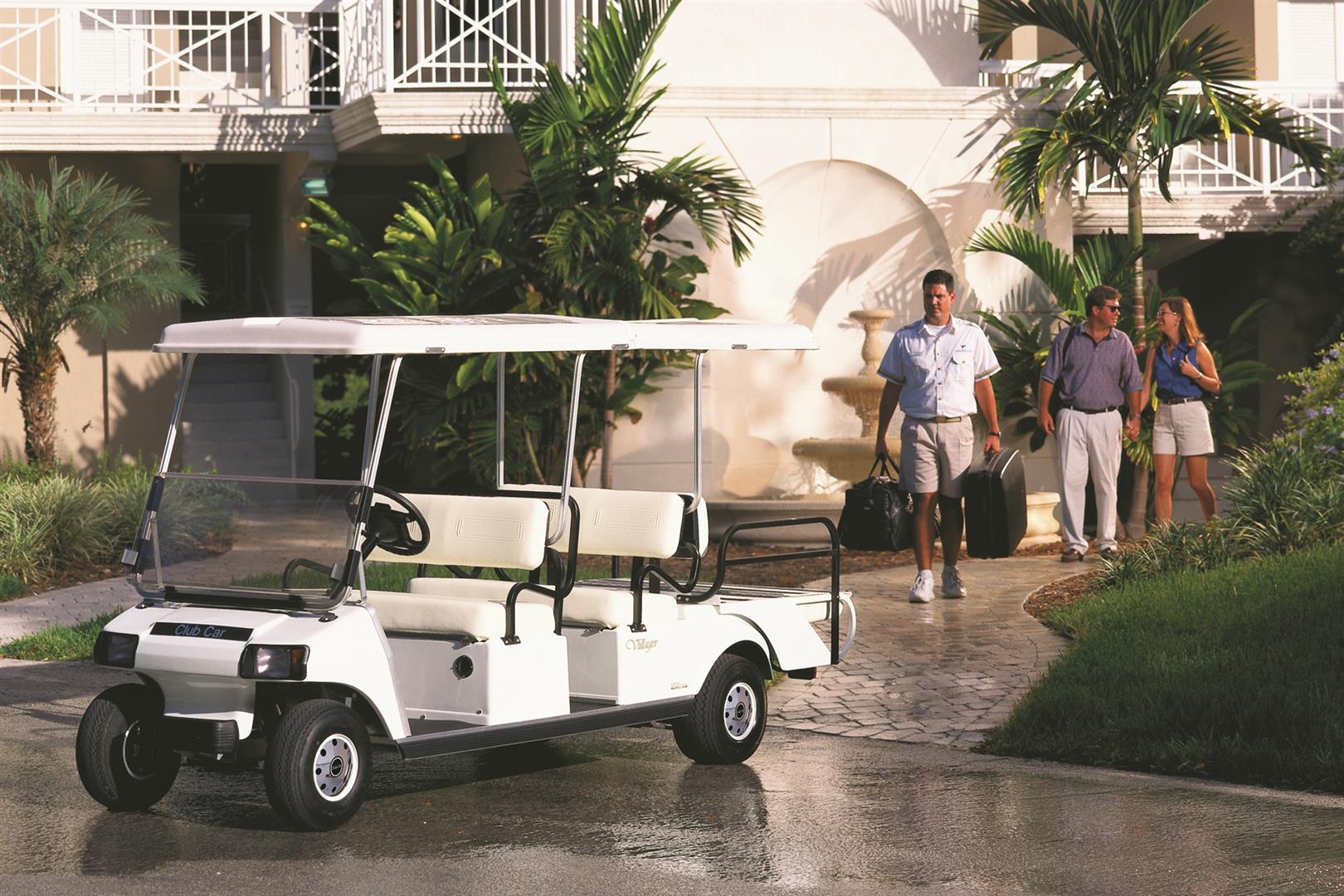

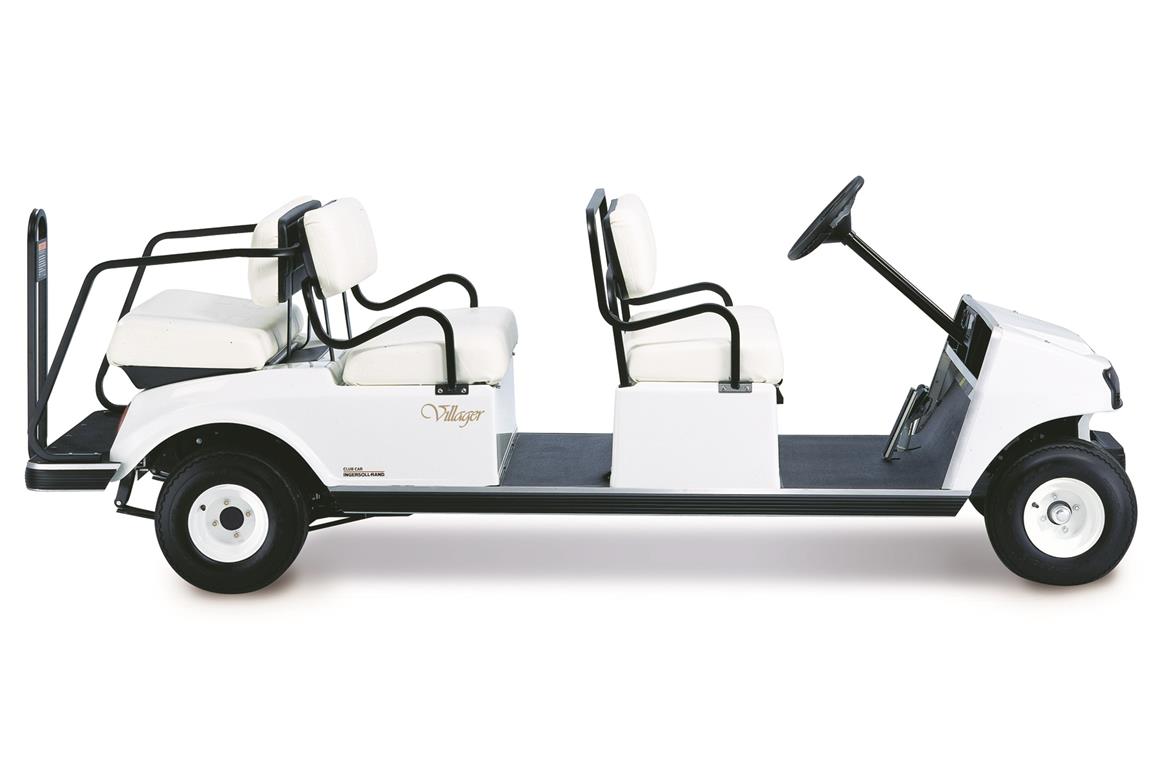

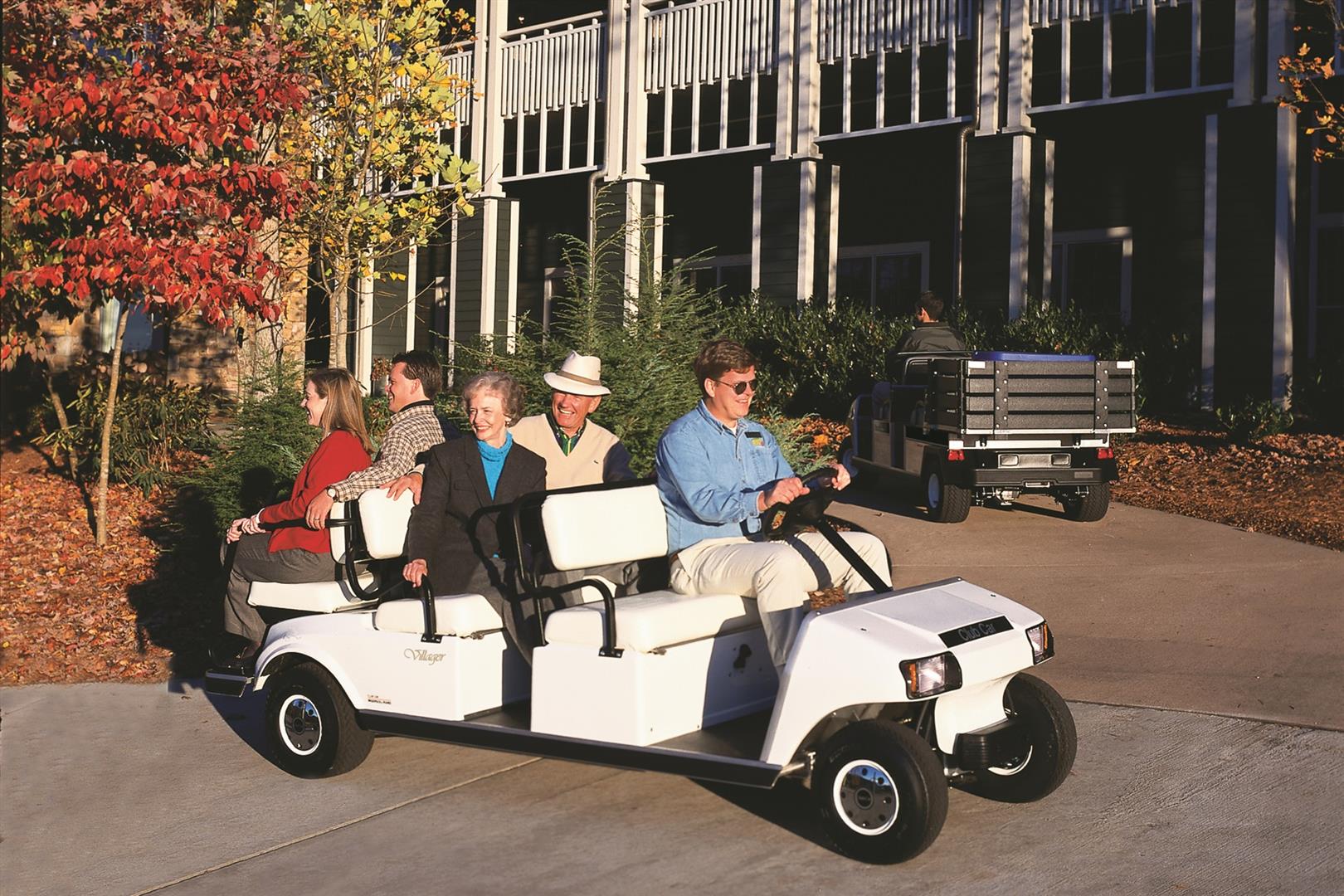

Villager 6 Gas Transportation Vehicle

Its six-passenger seating offers superior comfort and style, and its optional fold-down
rear seat provides additional capacity for transporting cargo or passengers.





  1. Rustproof Aircraft Grade Aluminum Frame

  2. Independent front suspension with self-adjusting rack and pinion steering

  3. Industry\'s Best 2-year Limited Warranty

  4. Maximum speed of 16 mph (25.7 kph)

  5. Fixed Rear Seat Standard, Fold Down Rear Seat Available

  6. Taillights, Brake Lights, Halogen Headlights, and Horn

  7. Dual Dash Compartments

  8. Carries up to 6 passengers

  9. Fuel gauge/hour meter standard

  10. ArmorFlex® Front Body for fade-resistant color

  11. 351 cc gasoline 11.5 hp engine




















































































































































Power Source Gas
Engine Kawasaki 4-cycle, OHV, 351 cc, single-cylinder, air-cooled, pressure-lubricated, spin-on oil filter
Horsepower 11.5 hp @ 3,600 rpm, exceeds SAE J1940 Performance Standards
Steering Self-adjusting rack and pinion
Front Suspension Independent leaf spring with dual hydraulic shocks
Seating Capacity 6
Ground Clearance 4.5 in (11.4 cm)
Fuel Tank Capacity 7 gal (26L)
Speed Range 14-16 mph (22.5-25.7 kph)
Brakes 4-wheel mechanical drum
Park Brake Foot-operated, multi-lock
Frame Chassis Aluminum I-beam
Body ArmorFlex®
Body color Matching paint over molded in color Light Package Standard Standard Front Tires 18 x 8.50-8, 6-ply rated, premium tread 18 x 8.50-8, 6-ply rated, premium tread Rear Tires 18 x 8.50-8, 6-ply rated, premium tread 18 x 8.50-8, 6-ply rated, premium tread Instrumentation Battery capacity indicator, Battery warning light Electronic fuel gauge/hour meter, low-oil warning light Total Vehicle Capacity 1,500 lb (681 kg) 1,500 lb (681 kg) Seating Capacity 6 6 Overall Length 124 in (315 cm) 124 in (315 cm) Overall Width 47.3 in (120.1 cm) 47.3 in (120.1 cm) Overall Height 48 in (121.9 cm) 48 in (121.9 cm) Wheelbase 98.5 in (250.2 cm) 98.5 in (250.2 cm) Ground Clearance 4.5 in (11.4 cm) 4.5 in (11.4 cm) Fuel Tank Capacity 7 gal (26L) Tread 34.5 in/38.6 in (87.6 cm/97.8 cm) 34.5 in/38.6 in (87.6 cm/97.8 cm) Dry Weight (Less Batteries) 590 lb (267.9 kg) 745 lb (338.2 kg) Outside Radius Circle 24.7 ft (7.5 m) dia 24.7 ft (7.5 m) dia Turning Radius 12 ft (3.7 m) 12 ft (3.7 m) Intersecting Aisle Radius 7.5 ft (228.6 cm) 7.5 ft (228.6 cm) Speed Range 5-17 mph (8-27.3 kph) 14-16 mph (22.5-25.7 kph) Vehicle Warranty 2-year, limited; 4-year batteries; 4-year limited battery warranty 2-year limited
Front tires 18 x 8.50-8, 6-ply rated, premium tread
Rear tires 18 x 8.50-8, 6-ply rated, premium tread
Overall Length 124 in (315 cm)
Overall Width 47.3 in (120.1 cm)
Overall Height 48 in (121.9 cm)
Wheelbase 98.5 in (250.2 cm)
Tread 34.5 in/38.6 in (87.6 cm/97.8 cm)
Dry Weight (Less Batteries) 745 lb (338.2 kg)
Vehicle Warranty 2-year limited
Ignition Electronic with electronic limiter
Electrical System 12-volt, 500 cca 105 min reserve
Rear Suspension Leaf springs with dual hydraulic shocks
Instrumentation Electronic fuel gauge/hour meter, low-oil warning light
Total Vehicle Capacity 1,500 lb (681 kg)
Turning Radius 12 ft (3.7 m)
Governor Automatic ground speed sensing, internally geared-in unitized transaxle
Governed RPM 3,050 +/- 30
Drive Unit 11.8:1 forward, 17.1:1 reverse
Outside Radius Circle 24.7 ft (7.5 m) dia
Intersecting Aisle Radius 7.5 ft (228.6 cm)
Stabilizer Bar Yes
Light Package Standard
